ACZ-350 NZ

ACZ-350

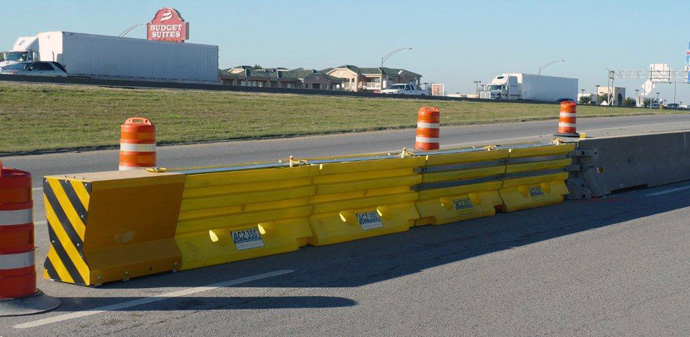

ACZ-350 - PORTABLE TL-2 & TL-3 END TREATMENT
The ACZ-350 System combines ease of use and NCHRP 350, gating, non-redirective TL-2 and TL-3 crash cushion performance for work zone protection. This partially reuseable crash cushion can be easily transported, and installed with No Roadway Anchors.

SUPERIOR IMPACT PERFORMANCE
The unique design of the ACZ-350 systems protects errant drivers from impacting concrete barrier ends, and also contains the errant vehicle from vaulting into the workzone.

NON-REDIRECTIVE, GATING CRASH CUSHION SYSTEM
All Crash Cushions defined as Non-redirective and Gating require a clear zone. Clear Zones are areas behind the crash cushion that NO workers, machinery, obstructions or other debris could interfere with an errant vehicle. This area should also remain relatively flat. If there are any questions or concerns, please contact your local Ingal Civil Products representative.

EASY DEPLOYMENT AND REMOVAL
The ACZ-350 System can be easily unloaded and positioned without cranes or heavy equipment. Deployment involves three simple steps:
1. Unload
2. Position and pin barrier sections
3. Fill Segments with water

Specifications TL-3

  • Length 9.6 m
  • Width 0.6m
  • Height 0.8m
  • Weight (empty) 613kg
  • Weight (full) 2797kg
