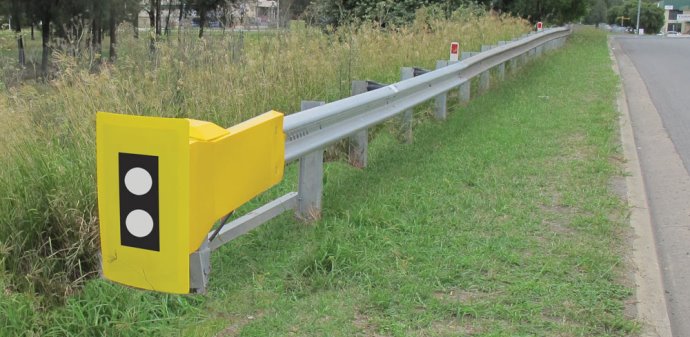

​ET2000 - Motorcyclist Protection Shield


The ET2000 Motorcyclist Protection Shield is a protective enhancement installed on the ET2000 Plus guardrail end terminal to reduce the chances of serious injury to motorcyclists and pillion passengers in impacting the terminal.

Traditional highway safety barriers, installed on road carriageways to restrain vehicles from impacting roadside hazards can sometimes introduce hazards to motorcyclists and other vulnerable road users. The ET2000 Motorcyclist Protection Shield is a new product to help mitigate some of these hazards and increase visibility. The shield conceals some of the openings and snag points on the traffic side of the extruder head, inhibiting an errant motorcyclist from getting caught in these snag points. The design also includes a cap for Post 1, removing another snag point.

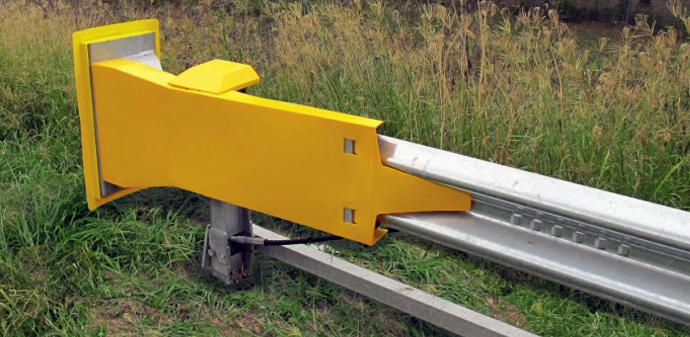

Installation of the protection shield is via two tabs which clip into the trailing end of the extruder head and two screws into the top of the extruder head.

For information on our crash tested rub-rail product, the Ingal MPR, click here.


pdf_download ET2000 Motorcycle Protection Shield Data Sheet

Note. Before installation, ensure the variant of highway safety barrier is accepted for use by the final asset owner.

Drawing Number

Description

Updated

CAB-STD-136 ET2000 - Motorcycle Protection Cover  21/08/2014


Note. Before installation, ensure the variant of highway safety barrier is accepted for use by the final asset owner.
