Ingal Civil Steel Post Intermediate Anchor

Steel Post Intermediate Anchor

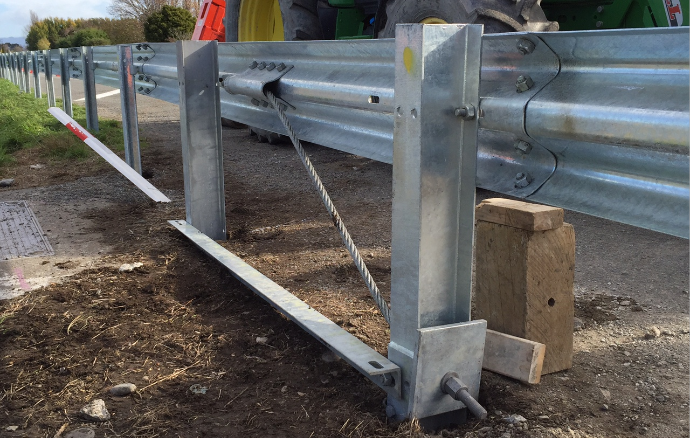

Intermediate Anchors are used on runs to W-Beam barrier to provide anchoring on the approach to, or on the departure from, small radius curves. The Ingal Intermediate Anchor is an all steel system, offering greater durability than the traditional timber posts systems with quicker installation time.

The two posts of the system are W6x9 I-beam section, meaning they can be easily installed by all common guardrail post drivers. All posts and rail components have been galvanised to AS/NZS 4680.

Manual Tab.
Drawing Number Description Updated
CAB-STD-134 Isometric exploded assembly view 19-04-2016
CAB-STD-135
Elevation assembly view 16-09-2015
