ArmorZone® temporary barrier


Ingal’s Armorflex ArmorZone® temporary barrier meets NCHRP 350 TL2 criteria for temporary longitudinal barriers. The Armorzone® product has been designed with ease of deployment and removal in mind.

ArmorZone® excels in durability while performing with a very competitive deflection in its market category for road safety products. All this being possible due to its unique HDPE formula which places ArmorZone® in a league of its own as the ideal temporary barrier for the roadway safety hire market.

Features:

  • Tested, approved and certified to NCHRP 350 TL2 containment level standards
  • Exceptionally good vehicle control and low deflection
  • Available NCHRP 350 TL-2 end treatment

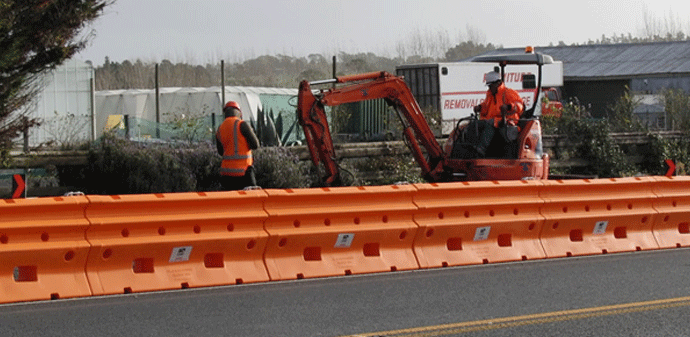

  • Easy install and transportation
  • Water level indicator available (accessory)
  • Smooth surfaces and geometry, more forgiving on vulnerable road users
  • No external steel structure

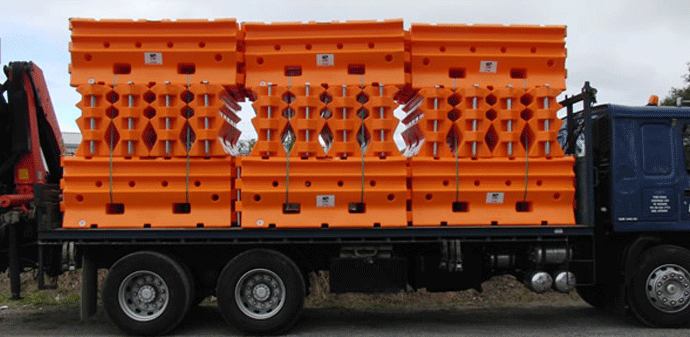

  • Container “friendly” dimensions allow for effective shipping (83 units fit in a 40’ container)
  • Water-Opening-Screen (accessory to prevent rubbish disposal in barriers)
  • Stabilised HDPE modules strong enough to absorb nuisance impact without repair
  • Environmentally friendly – 100% recyclable
  • Deployment rate of 120m of barrier per hour



pdf_download Ingal MPR Product Manual

Note. Before installation, ensure the variant of highway safety barrier is accepted for use by the final asset owner.


Ingal MPR test TM.3.60 - 85kg dummy - 60km/h impact speed


Ezy-Guard with Ingal MPR - MASH 3-10 test - 1100kg vehicle impacting at 100km/h


Drawing Number

Description

Updated

ICP-MPR-006 Ingal MPR - 3.81m Ezy-Guard Configuration 29/10/2015
ICP-MPR-007  Ingal MPR - Ezy-Guard Assembly Details  29/10/2015
ICP-MPR-008
Ingal MPR - NZ Timber Block Configuration
06/11/2015
ICP-MPR-009
Ingal MPR - Timber Post Guardrail ISO Exploded
06/11/2015


Note. Before installation, ensure the variant of highway safety barrier is accepted for use by the final asset owner.
